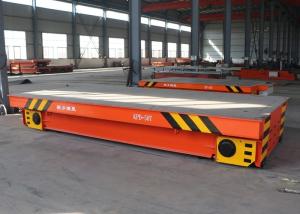

5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser

Name: 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser
Brand: SANTO
Price: 2500 USD

China 5 Ton 15 Ton 30 Ton Electric Transfer Cart Cable Drum Powered Industrial Traverser wholesale

Brand Name : SANTO

Model Number : KPX, KPJ, KPT, KPC, KPD,KP, BWP

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD2500-6000/set

Payment Terms : T/T, L/C

Supply Ability : 3000 SETS/YEAR

Delivery Time : 15~30 WORKING DAYS

Packaging Details : LCL container shipping by wooden case, nude for FCL container, or as your requirements.

Product name : electric transfer cart,material handling trackless electric steel coil transfer cart,5 Ton 10 Ton 30 Ton Motorized Rail Transfer Cart Electric Flat Car,Ladle Transfer Cart,Cargo Trolley

Color : Customized

Application : Widely,Industrial Filed,Material handling/steel coil/industrial,Transfer frequently,pipe) or equipment handling

Power supply : Battery, bus bar, cable reel, rails, cable drag chains

Warranty : 1 Year

Wheel : Four-wheel

Load capacity : Custom from 1t to 300t

Size : Customized Size

Running speed : 0-25 m/min(Adjustable)

Brake : Electric motor brake

Contact Now

Electric Transfer Cart Cable Drum Powered Industrial Traverser for Facility Assembly Line 5 ton 10 ton 15 ton 30 ton

Product Description

Electric transfer cart is a kind of transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy and warehouse to frequently transport or cooperate with cranes to transfer goods.

Electric Transfer Carts are mounted on steel rail for shuttling along a fixed path. They can be divided in different types, as below:

1. KPT type is Towed Transfer Cart, powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
2. KPJ type is Cable Reel Transfer Cart, powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.
3. KPX type is Battery Transfer Cart, powered by the storage battery. Without the cable, this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially, the price and the life span of the battery is also an important issue.
4. KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.
5. KPD type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type; the system is also more complicated and expensive.

Parameters:

Capacity(t)		6	10	16	25	40	63	100
PLATFORM SIZE (MM)	LENGTH	3600	3600	4000	4500	5000	5600	6300
	WIDTH	2000	2000	2200	2200	2500	2500	2800
	HEIGHT	550	550	580	650	700	850	900
WORKING SPEED (M/MIN)		30	30	30	30	25	25	20
BOTTOM OF BOARD SIZE (MM)		50	50	50	60	60	60	60
WHEEL BASE A(MM)		2000	2000	2200	2500	2800	3200	3600
WHEEL BACK DISTANCE C(MM)		1435	1435	1435	1435	1435	1435	1435
POWER		380V 3PH OR BATTERY

Features:

Sound and light alarm lamp
Stop automatically when pedestrian or obstacle is detected.
Emergency stop button
Limit switches and buffers on both sides.
The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test.
With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices.
Optional wireless remote control operation
