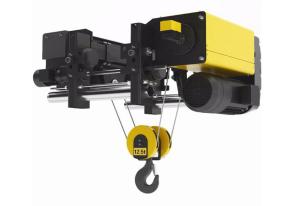

5000 KG Track Traveling European Type Electric Wirerope Hoist For Workshop Handling

Name: 5000 KG Track Traveling European Type Electric Wirerope Hoist For Workshop Handling
Brand: SANTO
Price: 2000 USD

China 5000 KG Track Traveling European Type Electric Wirerope Hoist For Workshop Handling wholesale

Brand Name : SANTO

Model Number : CXTS, CXTD

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1set

Price : USD2000-10000/set

Payment Terms : L/C, T/T

Supply Ability : 5000set/year

Delivery Time : 10-25 working days

Packaging Details : Packed by high quality plywood crate

Condition : New

Warranty : 12 Months

Max. lifting load : 20t

Max. lifting height : 3-18m

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service

Rated lifting moment : Different

Product name : European Type Electric Hoist

Application : workshop,Warehouse,plants,factory,warehouse and so on

Control method : Wireless Remote Control,Ground control,pendant control

Rated loading capacity : 1-20t

Color : Yellow,Blue,Green, or as requirments

Power source : 3 Phase 380V 50hz or be customized

Power supply : 220V~480V 50/60Hz

Type : Hoist Single Girder Bridge Crane,Single girder overhead crane,10 ton overhead crane

Lifting mechanism : Electric Hoist

Lifting speed : 0~8m/min

Main electrical parts : Chint, or as requirments Siemens, Schneider

Contact Now

5000 KG Good Sales Track Traveling European Type Electric Wirerope Hoist For Workshop Handling

FEM/DIN Package Monorail Electric Hoist

The electric wire rope hoist designed for single girder cranes follows the European FEM /DIN standards with compact structure, safe and efficient, easy operation. Industries use these electric wire rope hoists along with electric trolley for single girder cranes or another alternative like a fixed suspension type for applications involving goods lifting.

Electric Hoist part

Cap.	Lift height	Code	Lift speed	Lift power	Travel speed	Travel power	Lift duty class	Travel duty class	H	C	Gauge
t	m	Code	m/min	KW	m/min	KW	Lift duty class	Travel duty class	mm	mm	mm
2	6	SQ021413FBNA	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	9	SQ021413FBNB	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	12	SQ021413FBNC	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	15	SQ021413FBND	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	18	SQ021413FBNE	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
3.2	6	SQ031413FBNA	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	9	SQ031413FBNB	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	12	SQ031413FBNC	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	15	SQ031413FBND	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
	18	SQ031413FBNE	5/0.8	3.2/0.45	5/20	0.37	3M/M6	2M/M5	180	556	100~250
5	6	SQ051415FENA	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	9	SQ051415FENB	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	12	SQ051415FENC	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	15	SQ051415FEND	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
	18	SQ051415FENE	5/0.8	6.1/1	5/20	0.55	3M/M6	2M/M5	190	596	150~300
6.3	6	SQ061415FENA	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	9	SQ061415FENB	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	12	SQ061415FENC	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	15	SQ061415FEND	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
	18	SQ061415FENE	5/0.8	6.1/1	5/20	0.55	1Am/M4	2M/M5	190	556	150~300
8	6	SQ082411FHNA	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	9	SQ082411FHNB	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	12	SQ082411FHNC	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	15	SQ082411FHND	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
	18	SQ082411FHNE	5/0.8	9.5/1.5	5/20	0.75	3M/M6	2M/M5	200	1150	150~300
10	6	SQ102411FHNA	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	9	SQ102411FHNB	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	12	SQ102411FHNC	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	15	SQ102411FHND	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
	18	SQ102411FHNE	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5	200	1150	150~300
12.5	6	SQ122411FJNA	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	9	SQ122411FJNB	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	12	SQ122411FJNC	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	15	SQ122411FJND	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	150~300
	18	SQ122411FJNE	4/0.6	12.5/2	5/20	0.75	1Am/M4	2M/M5	200	1150	250~350
16	6	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	9	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	12	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	15	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
	18	SQ163412EKNA	4/0.6	16/2.6	5/20	0.75*2	2M/M5	2M/M5	250	1320	250~350
20	6	SQ204412EKLA	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	9	SQ204412EKLB	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	12	SQ204412EKLC	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	15	SQ204412EKLD	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350
	18	SQ204412EKLE	4/0.6	16/2.6	5/20	0.75*2	1Am/M4	2M/M5	250	1320	250~350

- Loading capacity: 1.25 ~ 20t

- Lifting height: 6 ~ 18m

- Lifting speed Double speed: 0.8/5 m/min; or customized

- Traveling speed Variable frequency speed: 2 ~ 20 m/min; or customized

- Working class: M5 / M6 (FEM 2M/3M)

- Working temperature: -20 ~ 40 ℃

- Power supply: AC-3Phase-220//230/380/400/415/440V-50/60Hz

- Control voltage: DC-36 / 48V
